What is Apache Kafka? Part 1

Introducing Apache Kafka


Data Integration Challenges

Context

A typical organization has multiple sources of data with disparate data formats. Data integration involves combining data from these multiple sources into one unified view of their business.

A typical business collects data through a variety of applications, e.g., accounting, billing, CRM, websites, etc. Each of these applications have their own processes for data input and update. In order to get a unified view of their business, engineers have to develop bespoke integrations between these different applications.

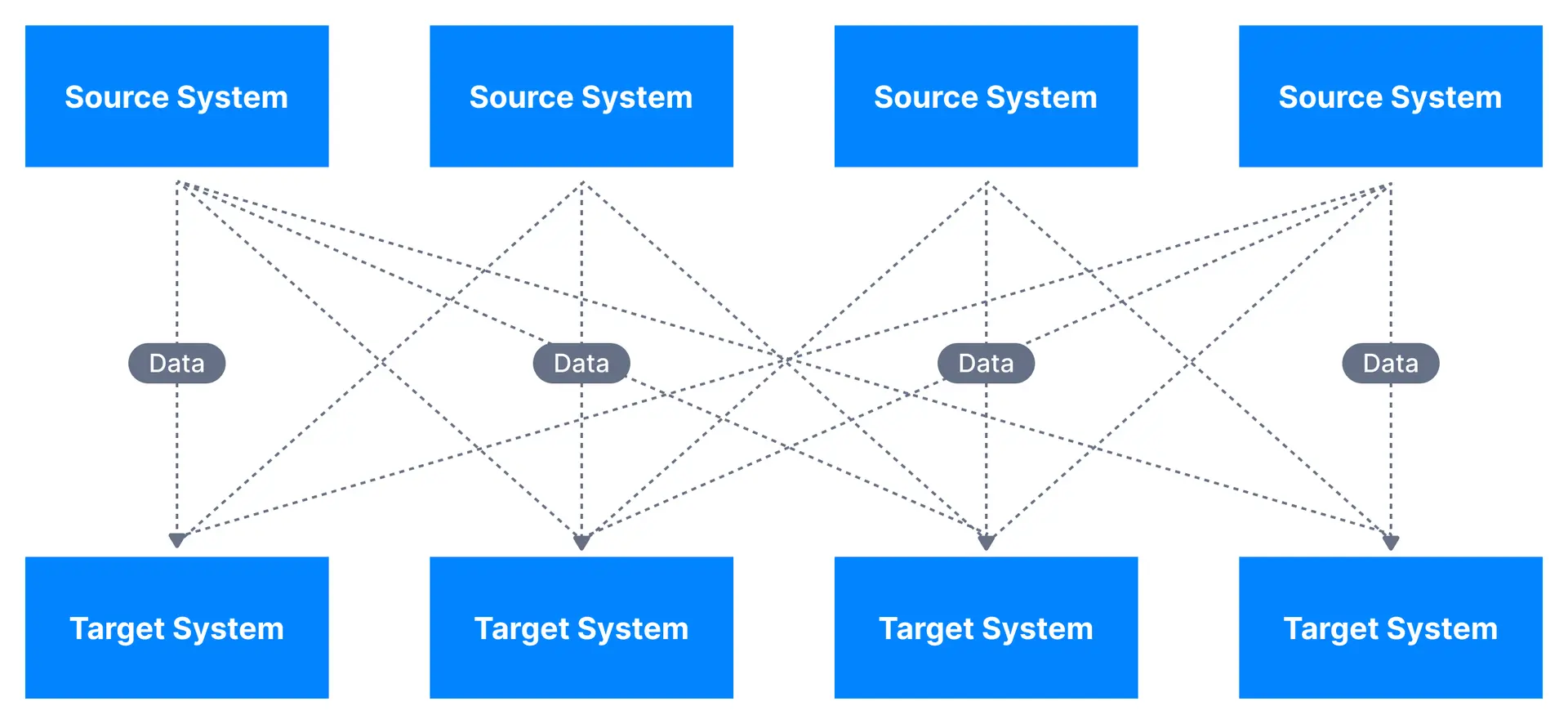

These direct integrations can result in a complicated solution as shown below.

Apache Kafka helps to solve many of the challenges associated with the integration of data from multiple different systems. This diagram shows how complex the flow of data can be when systems are not decoupled.

Each integration comes with difficulties around

  • Protocol – how the data is transported (TCP, HTTP, REST, FTP, JDBC…)

  • Data format – how the data is parsed (Binary, CSV, JSON, Avro…)

  • Data schema & evolution – how the data is shaped and may change

Apache Kafka to the rescue

Decoupling Different Data Systems

Apache Kafka allows us to decouple data streams and systems.

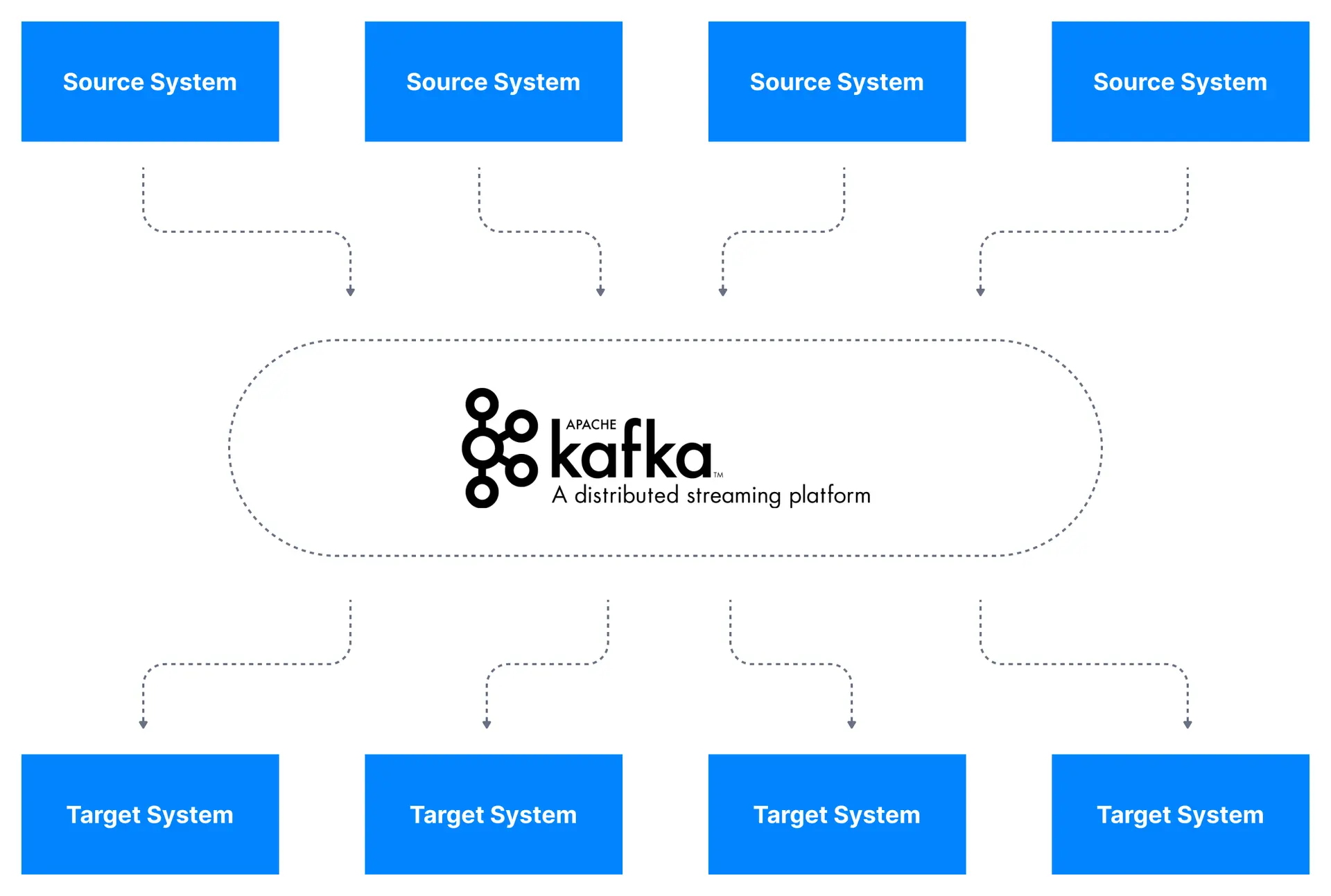

With Apache Kafka as a data integration layer, data sources will publish their data to Apache Kafka and the target systems will source their data from Apache Kafka. This decouples source data streams and target systems allowing for a simplified data integration solution, as you can see in the diagram below.

Apache Kafka provides an effective way for organisations to overcome data integration challenges by making it easy to decouple different systems

What is a data stream in Apache Kafka?

A data stream is typically thought of as a potentially unbounded sequence of data. The name streaming is used because we are interested in the data being accessible as soon as it is produced.

Each of the applications in an organization where data is created is a potential data stream creator. Data created as part of data streams are typically small. The data throughput to data streams is highly variable: some streams will receive tens of thousands of records per second, and some will receive one or two records per hour.

Apache Kafka is used to store these data streams (also called topics), which then allows systems to perform stream processing - an act of performing continual calculations on a potentially endless and constantly evolving source of data. Once the stream is processed and stored in Apache Kafka, it may be transferred to another system, e.g., a database.

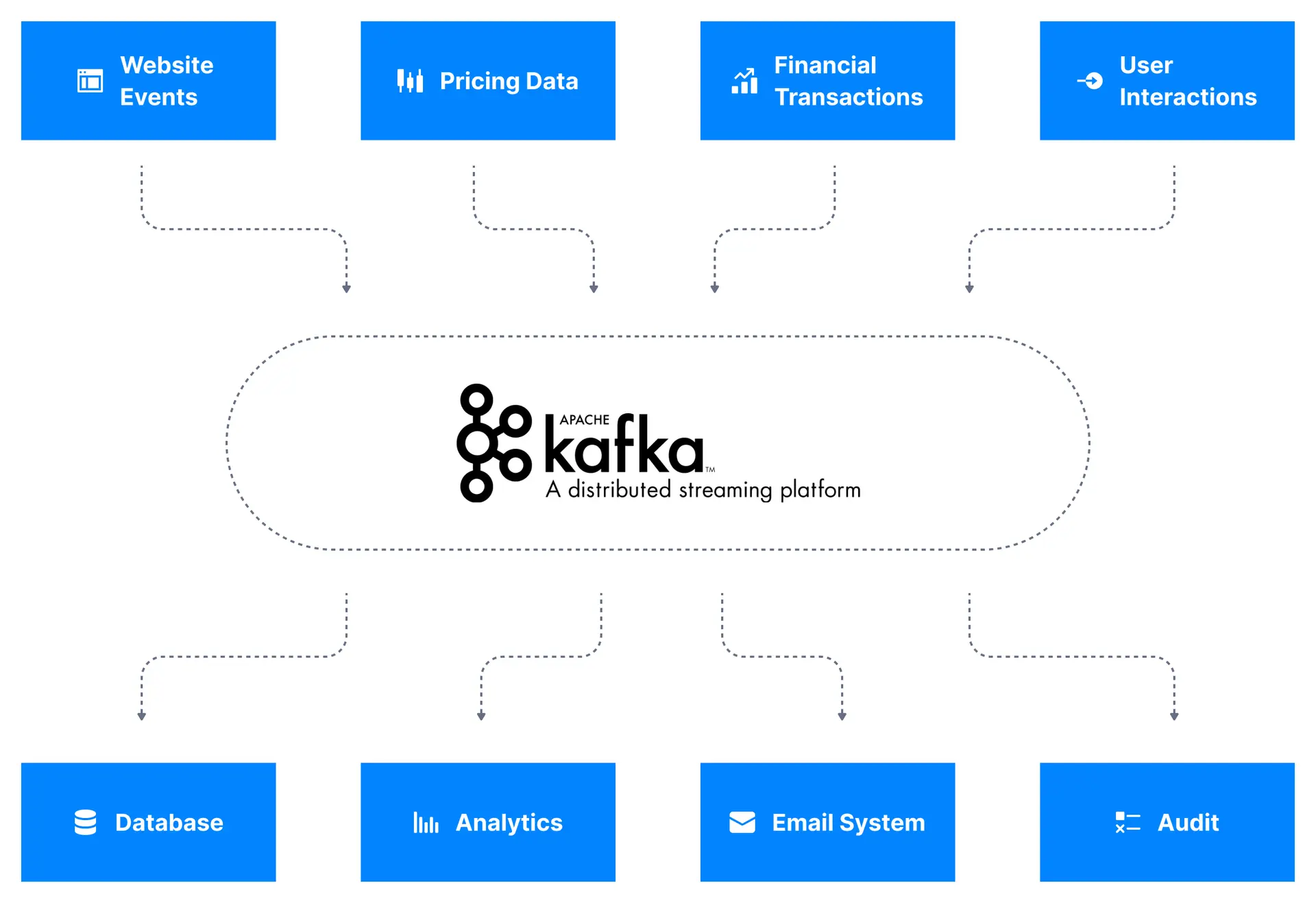

Apache Kafka allows for data from various different business applications and sources to flow into a real-time data pipeline that can process millions of events per second.

Examples of Data streams

The following are examples of some of data streams in real-world that companies process

  • Log Analysis. Modern applications include tens to thousands of microservices - all of which constantly produce logs. These logs are full of information that can be mined for business intelligence, failure prediction, and debugging. The challenge then is how to process these large volumes of log data being produced in one place. Companies push log data into a data stream to perform stream processing.

  • Web Analytics. Another common use for streaming data is web analytics. Modern web applications measure almost every user activity on their site, e.g., button clicks, page views. These actions add up fast. Stream processing allows companies to process data as it is generated and not hours later.

Why should a company use Apache Kafka?

As soon as a company has real-time data streaming needs, a streaming platform must be put in place.

Apache Kafka is one of the most popular data streaming processing platforms in the industry today, being used by more than 80% of the Fortune 100 companies. Kafka provides a simple message queue interface on top of its append-only log-structured storage medium. It stores a log of events. Data is distributed to multiple nodes. Kafka is highly scalable and fault-tolerant to node loss.

Kafka has been deployed in sizes ranging from just one node to thousands of nodes. It is used extensively in production workloads in companies such as Netflix, Apple, Uber, Airbnb, in addition to LinkedIn. The creators of Kafka left LinkedIn to form their own company called Confluent to focus full-time on Kafka and its ecosystem. Apache Kafka is now an open-source project maintained by Confluent.

Apache Kafka History

Kafka was created at LinkedIn to service internal stream processing requirements that could not be met with traditional message queueing systems. Its first version was released in January 2011. Kafka quickly gained popularity and since then became one of the most popular projects of the Apache Foundation.

The project is now mainly maintained by Confluent, with help from other companies such as IBM, Yelp, Netflix and so on.

What are the use cases of Apache Kafka?

The use cases of Apache Kafka are many. These include stream processing for different business applications. Apache Kafka makes up the storage mechanism for some of the prominent stream processing frameworks, e.g., Apache Flink, Samza.

  • Messaging systems

  • Activity Tracking

  • Gather metrics from many different locations, for example, IoT devices

  • Application logs analysis

  • De-coupling of system dependencies

  • Integration with Big Data technologies like Spark, Flink, Storm, Hadoop.

  • Event-sourcing store

You can find a list of use cases at https://kafka.apache.org/uses

Where is Apache Kafka not a great fit?

Apache Kafka is a great fit for the use cases outlined above, but there are a few use cases when using Apache Kafka is either not possible or not recommended:

  • Proxying millions of clients for mobile apps or IoT: the Kafka protocol is not made for that, but some proxies exist to bridge the gap.

  • A database with indexes: Kafka is an event streaming log with no analytical capability built in and no complex query model.

  • An embedded real-time technology for IoT: there are lower level and lighter alternatives to perform these use cases on embedded systems.

  • Work queues: Kafka is made of topics, not queues (unlike RabbitMQ, ActiveMQ, SQS). Queues are meant to scale to millions of consumers and to delete messages once processed. In Kafka data is not deleted once processed and consumers cannot scale beyond the number of partitions in a topic.

  • Kafka as a blockchain: Kafka topics present some characteristics of a blockchain, where data is appended in a log, and Kafka topics can be immutable, but lack some key properties of blockchains such as the cryptographic verification of the data, as well as full history preservation.

How is Kafka concretely being used within the industry?

Apache Kafka is widely used in the industry. Some of the use cases are highlighted below.

  • Uber uses Kafka extensively in their real-time pricing pipeline. Kafka is the backbone through which significant proportion of the events are communicated to the different stream processing calculations. The speed and flexibility of Kafka allows Uber to adjust their pricing models to the constantly evolving events in the real world (number of available drivers and their position, users and their position, weather event, other events), and bill users the right amount to manage offer and demand.

  • Netflix has integrated Kafka as the core component of its data platform. They refer to it internally as their Keystone data pipeline. As part of Netflix's Keystone, Kafka handles billions of events a day. Just to give an idea about the huge amount of data that Kafka can handle, Netflix sends about 5 hundred billion events and 1.3 petabytes of data per day into Kafka.

Unknown to many, Kafka is at the core of lots of the services we enjoy on a daily basis from some of the world largest tech companies such as Uber, Netflix, Airbnb, LinkedIn, Apple & Walmart.
