Kafka Producer Batching

Learn how Kafka producers batch messages


By default, Kafka producers try to send records as soon as possible. A producer will have up to 5 requests in flight (controlled by the max.in.flight.requests.per.connection setting), meaning up to 5 message batches will be sent at the same time. After this, if more messages have to be sent while others are in flight, Kafka producers are smart and producers will start batching messages while the previous message requests are finishing.

This smart batching allows Kafka to increase throughput while maintaining very low latency. Batches have a higher compression ratio so a better disk and networking efficiency. Batching is mainly controlled by two producer settings - linger.ms and batch.size.

linger.ms and batch.size

linger.ms is the number of milliseconds a producer is willing to wait before sending a batch out. The default value is 0, which means "send the messages right away".

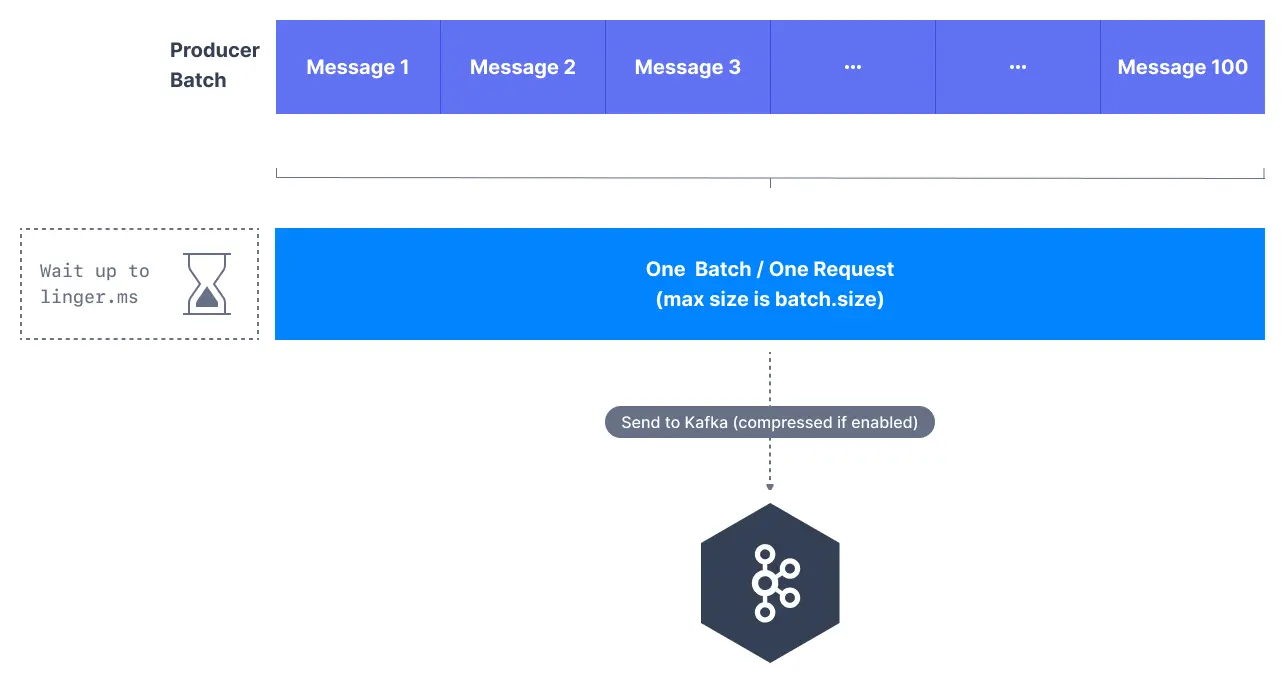

Diagram shows Kafka batching process. Kafka linger.ms setting controls the rate of batch requests and and the Kafka batch.size setting determines the max size of each batch
Kafka Producer Batching

By introducing some lag (for example linger.ms=20), we increase the chances of messages being sent together in a batch. So at the expense of introducing a small delay, we can increase the throughput, compression, and efficiency of our producer. If a batch reaches its maximum size (controlled by batch.size) before the end of the linger.ms period, it will be sent to Kafka right away!

batch.size is the maximum number of bytes that will be included in a batch.

The default is 16KB. Increasing a batch size to 32KB or 64KB can help increase the compression, throughput, and efficiency of requests. Any message that is bigger than the batch size will not be batched. A batch is allocated per partition, so make sure that you don’t set it to a number that’s too high, otherwise you may run into high memory usages!

Key Takeaways
  • Increase linger.ms and the producer will wait a few milliseconds for the batches to fill up before sending them.

  • If you are sending full batches and have memory to spare, you can increase batch.size and send larger batches.

A high throughput producer may have the following configurations

1 2 3 4 // high throughput producer (at the expense of a bit of latency and CPU usage) properties.setProperty(ProducerConfig.COMPRESSION_TYPE_CONFIG, "snappy"); properties.setProperty(ProducerConfig.LINGER_MS_CONFIG, "20"); properties.setProperty(ProducerConfig.BATCH_SIZE_CONFIG, Integer.toString(32*1024)); // 32 KB batch size
